The electromechanical generators for welding of the P-ARC line are the classic offer of robust and durable systems. They are the ideal choice for craftsmen, blacksmiths, maintenance workers and heavy carpentry. They meet professional and specialist welding needs and are guaranteed by the LAB mark of excellence.

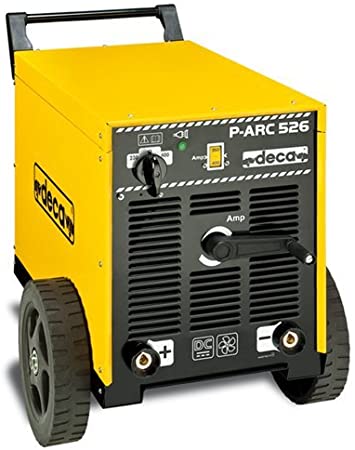

The P-ARC 526 LAB delivers 260 Amps of direct current to weld electrodes from 1.6 to 5.0 mm in diameter. Welds with rutile and basic coated electrodes on various metals: steel, stainless steel, cast iron, etc. The power supply voltage is single-phase at 230/400 Volt.
The P-ARC 526 LAB is easy to use:
Code: 227400
Equipment: power source only, DX 50 mm2
| Welding current range (Amp): | 45 – 260A |
|---|---|
| Duty Cycle (Amp) (EN 60974-1 40°C): | 180A – 35% 120A – 60% |
| Open circuit voltage (Volt): | 63 – 74V |
| Input voltage (50/60 Hz): | 3 Ph – 230/400V |
| Absorbed power 60% / Max: | 3,5 / 9 kW |
| Fuse (Amp): | 32/20A |
| ELETCTRODES : | : |
| Rutile: | Ø 1,6 – 5,0 mm |
| Basic: | Ø 2,0 – 5,0 mm |
| Output connection: | DX 50 mm2 |
| Thermostatic Protection: | no |
| Weight kg ≅: | 57,5 |
| Dimensions (mm): | 778 x 488 x 615 |
| FEATURES: | : |
| Fan cooled: | yes |
| Stepless regulation: | yes |
